FRAGMENT-BASED DRUG
DISCOVERY (FBDD)

Find your Next Hit with our Advanced Fragment Screening Platform

Home Services & Solutions Discovery Discovery Biology Fragment Based Drug Discovery (FBDD)

Fragment Based Drug Discovery (FBDD)

FBDD Services Overview
BioDuro maintains a diverse fragment library of 2,000-3,000 internally synthesized fragments with important pharmacophores to enable Fragment Based Drug Discovery (FBDD) by screening against a target.
Combined with our fragment screening technology and Biocore 8K surface plasmon resonance (SPR) system, we quickly identify fragments which bind to the target.
Part of a powerful integrated CRDMO, our FBDD capabilities accelerate hit identification, hit-to-lead optimization, and lead optimization activities for clients’ drug discovery programs. Once a fragment with affinity is found, it's chemically modified or combined with other fragments to improve its properties and create a more potent and selective drug candidate.
Click here to download the PDF version of our FBDD Services Flyer.

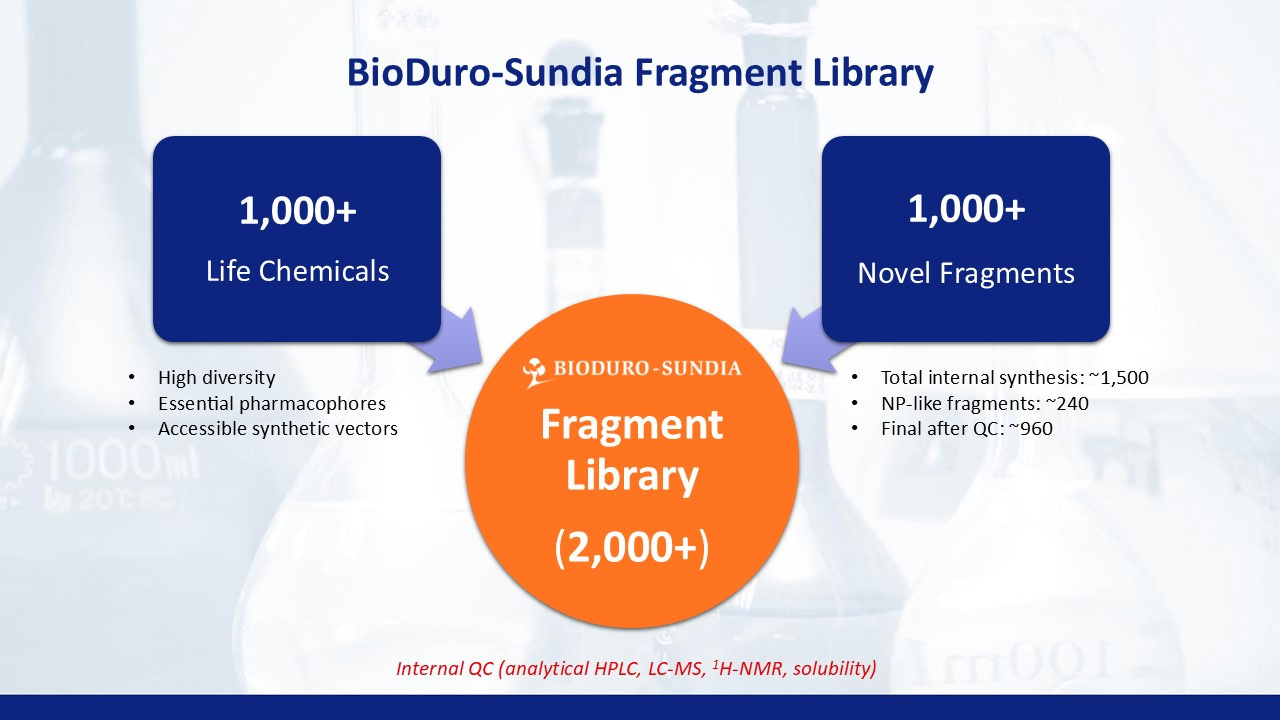

Fragment Library
Our fragment library contains 2,000-3,000 fragments to ensure diversity, pharmacophoric content, and novelty. ~1,000 fragments are selected from commercially available libraries, such as Life Chemicals, allowing our services to focus on screening and optimization. The other ~1,000 fragments are less conventional structures not commonly found in existing drug molecules.
We include novel scaffolds (e.g. natural products and traditional Chinese medicine) and exclude functional groups with known structural alerts (i.e. reactive, toxic, aggregators, PAINS compounds).
Our collection of both conventional and non-conventional fragments increases the likelihood to identify potent and selective compounds to produce unique and differentiated drug candidates.
Fragment Library Highlights:

2,000 fragments: 50% internally synthesized

Ro3 compliant drug lead-like fragments

240 NP-like fragments

Free from known structural alerts

Fragment Library Selection Criteria:

100 ≤ MW < 300

0 < ClogP ≤ 2.75

Purity ≥ 95% (metal ion free)

Aqueous solubility ≥ 1 mM; DMSO solubility ≥ 100 mM (room temperature)

HBD ≤ 3

HBA ≤ 6

Nrot ≤ 4

20 ≤ TPSA ≤ 90

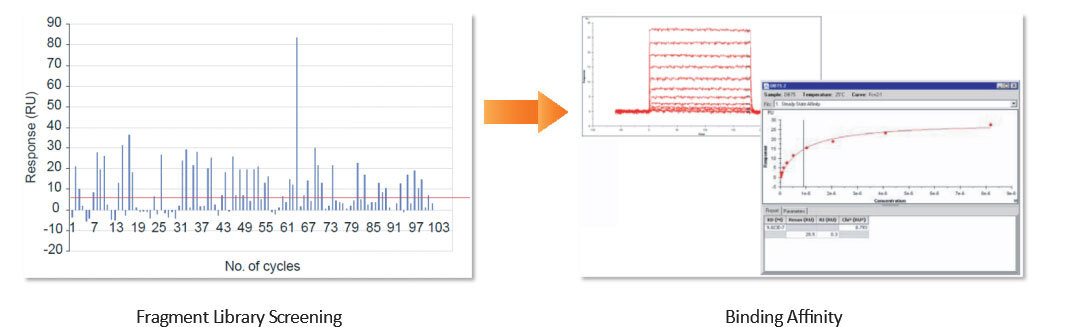

Fragment Screening with SPR
Our in-house Biacore 8K surface plasmon resonance (SPR) system enables quick, efficient and high-throughput fragment screening and characterization. We provide fragment library screening services as well as and follow-up studies with affinity and kinetics characterization by SPR.
Fragment Screening Highlights:

Robust with wide dynamic range (Kd: nM – mM)

Quantitative binding info: kon, koff, Kd

Binding stoichiometry

Very low protein consumption

High-throughput (Biacore 8K)

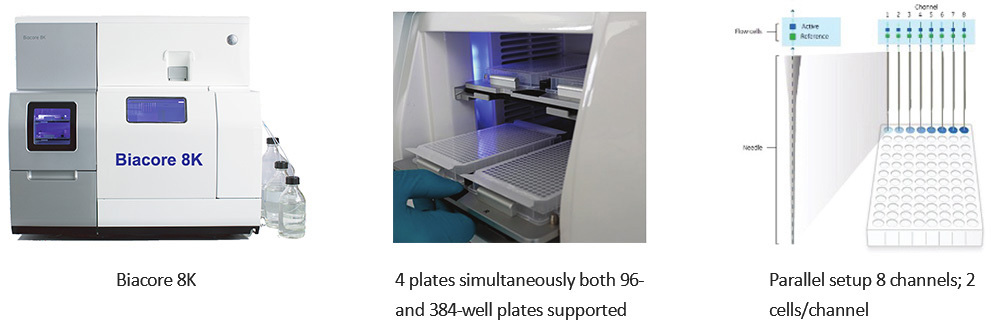

Cytiva Biacore 8k: High Throughput and High Sensitivity SPR System

Parallel setup, 8 channels, 2 cells/channel

Ideal for fragment based screening (FBS) and rapid follow-ups with dose-response confirmation of fragment hits

oIdeal for supporting fragment optimization and evolution with Kd and binding kinetics
